China Intelligent Campus PA System IP Network Broadcast IP PA Server wholesale

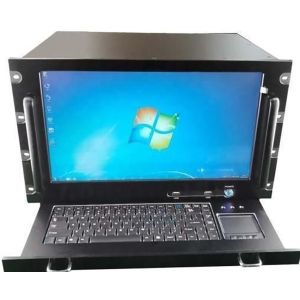

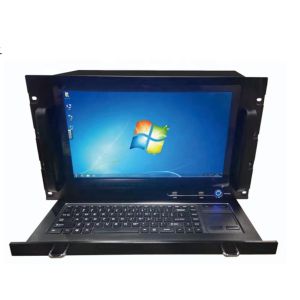

Intelligent Campus PA System IP Network Broadcast IP PA Server

Ask Latest Price

Video Channel

Place of Origin :Guangdong, China

Model Number :IP-1000

MOQ :100

warranty :3years

dimension :485*300*310

Contact Now

Add to Cart

View Product Description

Intelligent Campus PA System IP Network Broadcast IP PA Server

Product Description

Features

1.It is the carrier for IP digital broadcasting server, as well as the control center of broadcasting.

2. It is usually installed in the control room, to have a real-time management over the entire broadcasting efficiently.

3.Industrial-grade cabinet chassis design.

4.15/17 inch LED LCD display, 5-wire industrial reinforced touch screen, simple and easy-to-use touch screen control.

5. Industrial-grade dedicated motherboard design. Dual core four threaded ultra low power embedded industrial grade
processor, with faster processing speed. Stronger operational performance, able to work continuously and stably for a long period of time.

6.Large-capacity SSD solid state driver.

7. Built-in 6 sets of industrial asynchronous transmission interface and 4 sets of universal serial buses, with a maximum transmission rate of 480M.

8. Support 4-channel sound card, dual graphics card and can be connected to a maximum FullHD display device externally.

9.Equipped with a short-circuit triggered start-up operation interface, for timely driving startup and operation, achieving unmanned function.

10. After carrying the server software, it forms the system management and control center.

11.7U aluminum alloy black brushed panel.

12. Embedded touch screen.

13. Standard rack case design, anti-magnet, dust, and force .

14. Compatible with Windows/ Linux system .

15. Anti-interference and high temperature. It can work 7*12 hours non-stop

Model	IP-1000L	IP-1000
Processor	CoreI3		485(D)300mm(W)310mm(H)
Display	15'' LCD Display	17.3'' LCD Display
Memory	DDR31333/1600MHz, 4G DIMM Slot port, max 16G
Hard disk	128G SSD Solid State Disk, SATA port
Operating system	Windows/Vista/WinXP/Win2000/Linux/UNIX
Touch screen	Capacitive touch screen
Hard disc expansion	1 SATA 2.0 Connector; 1 SATA 3.0 Connector
Power interface	3-pole phoenix connector
Operating temperate	-10℃-50℃
Operating humidity	5%-95%
Display interface	1×VGA，1×HDMI
Network interface	1， 10/100/1000Mbps
Serial port	1, RS-232
USB	3.0 USB×2, 2.0 USB×4
Line input	4×RCA connector
Mic input	3.5 Jack and 6.35 Jack
Parallel port	1
Dimentions	485mm(D)300mm(W)310mm(H)
Storage temperate	-20℃-60℃
Weights(kgs)	15
